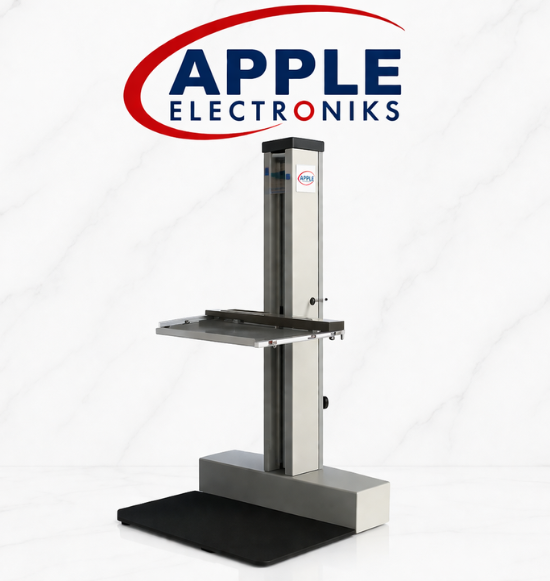

BDT Automatic Bag Drop Tester – Latest Model
The BDT Automatic Bag Drop Tester is a highly accurate, motorized instrument designed for drop tests on HDPE/Polypropylene (PP) woven sacks used for packaging fertilizers. Its stainless-steel body prevents chemical deformation, and two adjustable, lockable flaps allow precise sack positioning for each test.
The adjustable rotating arm enables drop tests on all six orientations of the sack — face side, back side, left edge, right edge, bottom edge, and top edge. Each sack is dropped from a height of 1.8 metres to simulate real-world performance during repeated handling, loading, unloading, and stacking operations.
The motorized platform is uplifted via gear and motor mechanism with a 1.0mm least count. Drop height is adjustable from 200mm to 2000mm, and both straight and angular drop tests can be performed on a single instrument. Built on a strong MS or SS304 base plate, the BDT complies with BIS 9755: 2021.
Specifications
Height (Adjustable – Motorized)
2.0 Meter (2000mm) | Least Count: 1.0mm
Minimum Drop Height
200 mm
Maximum Drop Height
2000 mm (2.0 m)
Sample Mounting Table
600×900 mm / 700×1000 mm
Max. Weight Capacity
65 kg
Machine Weight
>170 kg – 250 kg
Dimensions (L×W×H)
2100×950×650 mm
Key Features
Provision to uplift test platform by Gear & Motorized mechanism
Drop height adjustable clamp with 1.0mm least count precision
Straight and Angular Drop tests can be performed on a single instrument
Strong base plate with rugged structure — MS or SS304 construction
Two adjustable and movable flaps with lock facility for secure sack positioning
Adjustable rotating arm for drop tests on all six sack orientations
Test Standards
BIS 9755: 2021
Key Highlights
Motorized Drop Height Control
Gear-motorized platform with 1.0mm least count enables precise height setting from 200mm to 2000mm, removing manual repositioning effort.
6-Orientation Drop Testing
The adjustable rotating arm tests all six sack orientations — face, back, left edge, right edge, bottom edge, and top edge — on a single instrument.
BIS 9755: 2021 Compliant
Specifically designed for HDPE/PP woven sacks used in fertilizer packaging, fully conforming to BIS 9755: 2021 drop impact test requirements.
The BDT is specifically designed for HDPE/Polypropylene (PP) woven sacks used for packaging fertilizers. It simulates real-world drop impacts during handling, loading, unloading, and stacking.
The drop height is motorized and adjustable from a minimum of 200mm to a maximum of 2000mm (2.0 metres), with a least count of 1.0mm.
The adjustable rotating arm enables drop tests on six orientations: face side, back side, left edge, right edge, bottom edge, and top edge.
The maximum weight of the test specimen (sack) that can be tested is 65 kg.
Yes, both straight and angular drop tests can be performed on a single instrument.
The BDT Automatic Bag Drop Tester complies with BIS 9755: 2021.
Two sample mounting table sizes are available: 600×900mm and 700×1000mm.
Dimensions: 2100×950×650mm. Machine weight: >170kg – 250kg.
