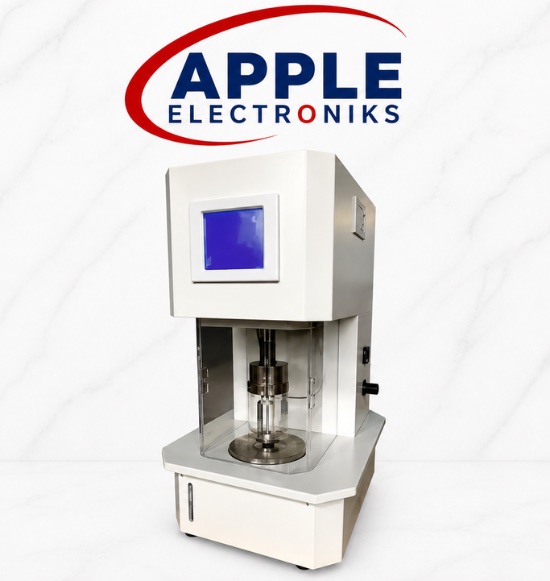

ABS10000/S Auto Bursting Strength Tester – 10000kPa
The ABS10000/S determines the bursting strength of woven and knitted fabrics, non-woven, paper, and board by applying a hydraulic load under a rubber diaphragm. It provides a digital readout of pressure with peak hold, renewable rubber diaphragms, automatic clamping, a clear acrylic bell, and a built-in LED lamp for easy observation during testing.
The instrument features a touch screen interface, a transparent organic protective glass cover with built-in LED illumination, and an automatic burst-sensing system. It is equipped with memory and printing functions, with optional computer software for machine control, data analysis, and test report generation.
Four test methods are supported: Extension until burst, Extension to specific pressure, Extension to specific distension, and Extension to specific time. Standard test areas are 50cm² (Φ79.8mm) and 7.3cm² (Φ30.5mm); optional 10cm² and 100cm² areas are also available. Available in ABS2000 (2000kPa), ABS6000 (6000kPa), and ABS10000 (10000kPa) models.
Specifications
Measuring Range
0–2.00 MPa (20 kg/cm²) | 0–6.00 MPa (60 kg/cm²) | 0–10.00 MPa (100 kg/cm²)
Minimum Division
0.001 MPa or 1 kPa
Diaphragm Thickness
≤ 2 mm
Test Areas (Standard)
7.3 cm² (Φ30.5 mm) & 50 cm² (Φ79.8 mm) | Optional: 10 cm² & 100 cm²
Max. Distension
75 mm
Pressurization Speed
20 – 600 ml/min
Units
kPa, kg/cm², Bar, lb/in²
Power
220V, 50Hz, 200W
Weight
200 kg
Dimensions (L × W × H)
620 × 400 × 530 mm
Models Available
ABS2000 – 2000kPa | ABS6000 – 6000kPa | ABS10000 – 10000kPa
Key Features
Hydraulic method as per IS 1966 Part 1
Touch screen — concise, simple, and convenient to use
Transparent organic protective glass cover with built-in LED illumination for easy viewing during testing
Automatic burst-sensing system — sensitive and reliable
Four test methods: Extension until burst, Extension to specific pressure, Extension to specific distension, Extension to specific time
Memory and printing function; optional computer software for machine control, data analysis, and test report generation
Test Standards
IS 1966 Part 1
ASTM 3786-06
ISO 2758/13938-1
BS 3424/3137
BS 4768
AS2001.2.4
IWSTM 29
EDANA 80.4-02/80.3-99
NEXT 22 2206
JIS L 1018.6.17
BS-2922
FZ/T 60019
FZ/T 01030
Key Highlights
Hydraulic Bursting up to 10000kPa
Covers measuring ranges up to 10.00 MPa (100 kg/cm²) across three model variants — ABS2000, ABS6000, and ABS10000 — with a minimum resolution of 1 kPa.
Two Standard Test Areas
Standard test areas of 50 cm² (Φ79.8 mm) and 7.3 cm² (Φ30.5 mm) are included. Optional 10 cm² and 100 cm² areas are also available.
4 Test Methods with Data Output
Supports four test methods with memory, printing, and optional PC software for data analysis and test report generation.
The ABS10000/S tests woven and knitted fabrics, non-woven materials, paper, and board by applying a hydraulic load under a rubber diaphragm.
The four test methods are: Extension until burst, Extension to specific pressure, Extension to specific distension, and Extension to specific time.
Standard test areas are 50 cm² (Φ79.8 mm) and 7.3 cm² (Φ30.5 mm). Optional areas of 10 cm² and 100 cm² are also available.
Three models are available: ABS2000 (up to 2000kPa), ABS6000 (up to 6000kPa), and ABS10000 (up to 10000kPa).
The measuring range goes up to 10.00 MPa (100 kg/cm²) with a minimum division of 0.001 MPa or 1 kPa. Results are displayed in kPa, kg/cm², Bar, or lb/in².
The instrument has built-in memory and printing function. Optional computer software is available for machine control, data analysis, and test report generation.
IS 1966 Part 1, ASTM 3786-06, ISO 2758/13938-1, BS 3424/3137, BS 4768, AS2001.2.4, IWSTM 29, EDANA 80.4-02/80.3-99, NEXT 22 2206, JIS L 1018.6.17, BS-2922, FZ/T 60019, FZ/T 01030, and many more.
Power: 220V, 50Hz, 200W. Weight: 200 kg. Dimensions: 620 × 400 × 530 mm (L×W×H).
