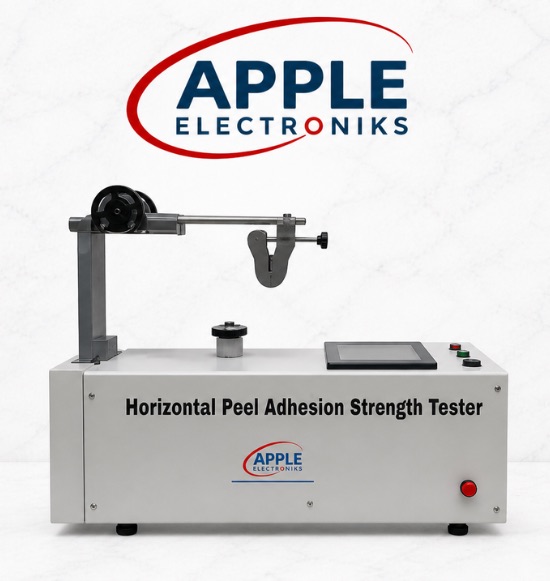

HFT200/S Horizontal Peel Strength Tester – Latest Touch screen Model
Our HFT200/S Horizontal Peel Strength Tester is a unique instrument for peel testing with good stability, wide application, and convenient usage. It features stepless speed adjusting, uniform motion, and the ability to convert between manual and automatic operation modes.
It is used for various applications such as Peel Strength Testing, Tensile Testing, Push & Pull Testing, Puncture / Piercing force, Penetration test, Measuring Strength of Glass Ampules, as well as for Scientific Research Institute needs and many more.
The horizontal platform design makes it especially suited for peel testing of flat laminates, films, tapes, and adhesive bonds. Driven by a PLC and Panasonic Servo motor and drive, it delivers precise and repeatable results with a touch screen display and one-touch automatic operation.
Specifications
Capacity
200N (20 Kg)
Resolution
0.1 gms, 0.1 N
Units
N, Kgf, Lbf
Traveling Length
300 mm (Customizable)
Speed Selector
0 to 4000 mm/min
Print Output
USB / Ethernet for data saving & printing
Ethernet Port
PC control via VNC on same network
Power Supply
220 / 110 V, 50/60 Hz
Weight
75 Kg
Dimensions
400 × 400 × 1080 mm (L × W × H)
Key Highlights
Touch Screen & One-Touch Auto Operation
Features an intuitive touch screen display with one-touch automatic operation. Stepless speed regulation and gear drive ensure smooth, uniform motion — switchable between manual and automatic modes for maximum versatility.
PLC & Panasonic Servo Drive
Driven by a PLC and Panasonic Servo motor and drive for precise, repeatable operation. The compact and stable drive structure ensures consistent force application across every test cycle, minimising variability and operator error.
Horizontal Platform Design
The horizontal platform layout is specifically suited for peel testing of flat films, laminates, tapes, and adhesive bonds. With USB / Ethernet data output and optional PC remote control via VNC, it integrates seamlessly into any quality control environment.
The HFT200/S is used for peel strength testing, tensile testing, push and pull testing, puncture / piercing force, penetration testing, and measuring the strength of glass ampules. Its horizontal platform makes it especially suitable for testing flat films, laminates, tapes, adhesive bonds, and flexible packaging materials.
The HFT200/S has a force capacity of 200N (20 Kg) with a resolution of 0.1 gms and 0.1 N. Results are displayed in N, Kgf, or Lbf — selectable based on the test standard or user requirement.
The HFT200/S supports stepless speed regulation from 0 to 4000 mm/min and has a standard traveling length of 300 mm, which can be customized to accommodate longer test specimens. The gear drive ensures smooth and uniform motion throughout the test cycle.
The HFT200/S provides USB and Ethernet output for data saving and printing. The Ethernet port also allows the machine to be controlled remotely from a PC using VNC software on the same network — enabling easy integration into laboratory data management and quality control systems.
Unlike vertical tensile testers, the HFT200/S uses a horizontal platform where the test sample lies flat during testing. This configuration is ideal for peel testing of flat substrates such as films, tapes, and laminates where gravity-induced sample distortion must be minimised.
The HFT200/S is powered by a PLC and Panasonic Servo motor and drive, providing precise and repeatable motion control. The compact gear drive structure ensures stable performance across all speed settings and test configurations.
The HFT200/S displays results in N (Newtons), Kgf (kilograms-force), and Lbf (pounds-force). The unit is selectable from the touch screen interface, allowing operators to match results to their required test standard without manual conversion.
The HFT200/S operates on 220/110 V, 50/60 Hz power supply and measures 400 × 400 × 1080 mm (L × W × H) with a weight of 75 Kg. It is compatible with standard laboratory and industrial electrical systems worldwide.
