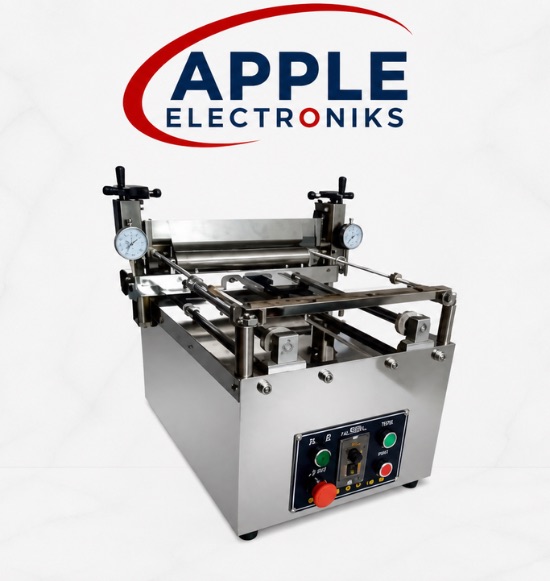

LCM Lab Coating Machine – Automatic for Precision Coating
The LCM Lab Coating Machine is electronically controlled precision coating equipment for laboratory use, with an effective coating area of 370×300mm. It is designed for lab coating technique experiments and is suitable for sampling tests on natural fibre, synthetic fibre, blended fabric, nonwoven fabric, specialty paper, and artificial leather.
The entire machine is constructed from SS 304 stainless steel and is configured with a needle plate frame, coating roller, and stainless steel scraper set at a 30° angle before coating. The needle plate frame is compatible with fabric into a lab stenter. Coating parameters are adjusted by modifying the scraper's vertical position and roller position.
The coating roller measures 40mm diameter × 300mm length. Coating thickness ranges from 0–5mm with a resolution of 0.01mm. Transmission is via ball screw and imported guide rail, with an adjustable coating speed of 0–1 meter/min. The machine measures 540×650×540mm, weighs 66 kg, and runs on 220V 50Hz power.
Specifications
Main Configuration
Needle Plate Frame, Coating Roller, Scraper
Control
Electronic Controlled
Material
SS 304 Stainless Steel (whole machine)
Sample Size
530×330 mm
Effective Coating Size
370×300 mm
Needle Plate Frame
Compatible with fabric into lab stenter
Coating Roller
Dia. 40mm × Length 300mm
Scraper
Stainless steel, 30° angle before coating
Coating Thickness
0–5 mm
Resolution
0.01 mm
Coating Parameter Adjustment
Via scraper's vertical position and roller position
Transmission
Ball screw, imported guide rail
Speed
0–1 m/min (adjustable)
Dimensions (L×W×H)
540×650×540 mm
Weight
66 kg
Power Supply
220V, 50Hz
Key Highlights
Precision Electronic Control
Electronically controlled precision motor delivers a coating resolution of 0.01mm with a thickness range of 0–5mm, adjustable via scraper and roller position.
Wide Material Compatibility
Suitable for sampling tests on natural fibre, synthetic fibre, blended fabric, nonwoven fabric, specialty paper, and artificial leather.
Full SS 304 Construction
The entire machine is built from SS 304 stainless steel with ball screw and imported guide rail transmission for durability and coating accuracy.
It is suitable for all sorts of natural fibre, synthetic fibre, blended fabric, nonwoven fabric, specialty paper, and artificial leather.
The effective coating area is 370×300mm. The maximum sample size is 530×330mm.
Coating thickness is adjustable from 0 to 5mm with a resolution of 0.01mm.
Coating parameters are modified by adjusting the scraper's vertical position and the roller position.
Transmission is via ball screw and imported guide rail, ensuring smooth and precise movement during coating.
The coating speed is adjustable from 0 to 1 meter per minute.
The entire machine is made of SS 304 stainless steel.
Power supply: 220V, 50Hz. Dimensions: 540×650×540mm. Weight: 66 kg.
