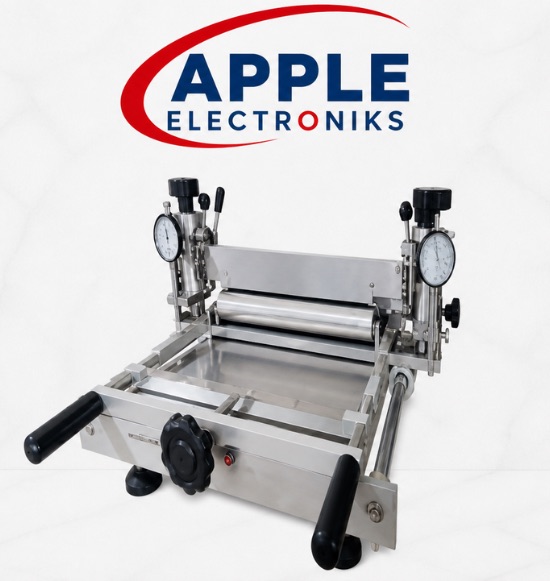

LCM/M Lab Coating Machine – Latest 2026
The LCM/M Lab Coating Machine is a cutting-edge, manually operated piece of equipment designed for laboratory use. Featuring a generous coating area of 285mm × 300mm, it is ideal for conducting precise and repeatable lab coating technique experiments.
Versatile and multi-material compatible, the machine supports a wide range of laboratory sampling tests including natural fibers, synthetic fibers, blended fabrics, nonwoven fabrics, specialty papers, and artificial leather.
Built with high-grade stainless steel and a blade angle adjustable from 20° to 115°, the LCM/M delivers 0.01mm coating thickness accuracy across a 0–5mm range, with a 45° blade, Φ40mm × 300mm roller, and a 600 × 600 × 300mm footprint weighing 30kg.
Specifications
Tension Frame
365mm × 440mm
Coating Area
285mm × 300mm
Coating Thickness
0 ~ 5mm
Thickness Accuracy
0.01mm
Coating Front Angle
20° ~ 115°
Blade Type
45° blade
Blade Spec
300mm × 60mm
Roller Spec
Φ40mm × 300mm
Weight
30 kg
Dimensions (L × W × H)
600 × 600 × 300 mm
Key Features
High-grade stainless steel construction for durability and resistance to coating chemicals and solvents
Blade gradient adjustable from 20° to 115° for precise coating angle control across a wide variety of coating techniques
0.01mm accuracy on coating thickness over a 0–5mm range ensures highly repeatable laboratory results
Large 285mm × 300mm coating area with 365mm × 440mm tension frame accommodates a wide range of laboratory-scale samples
Key Highlights
Manual Precision Control
Manually operated with an adjustable blade angle from 20° to 115°, giving the operator full control over coating parameters and technique.
High Accuracy Coating
Delivers 0.01mm coating thickness accuracy over a 0–5mm range with a 45° blade and Φ40mm roller for consistent, repeatable results.
Multi-Material Compatible
Compatible with natural fibers, synthetic fibers, blended fabrics, nonwoven fabrics, specialty papers, and artificial leather for versatile lab use.
The LCM/M is compatible with a wide range of materials including natural fibers, synthetic fibers, blended fabrics, nonwoven fabrics, specialty papers, and artificial leather — making it suitable for diverse laboratory sampling and coating experiments.
The LCM/M covers a coating thickness range of 0 to 5mm with an accuracy of 0.01mm. This precise control ensures consistent and repeatable coating thickness across all laboratory experiments.
The LCM/M has an effective coating area of 285mm × 300mm, supported by a tension frame measuring 365mm × 440mm. This generous area is well suited for laboratory-scale coating technique experiments on a variety of substrate types.
The LCM/M uses a 45° blade with dimensions of 300mm × 60mm. It is paired with a Φ40mm × 300mm roller for smooth and uniform application of coating across the sample surface.
The blade gradient on the LCM/M is manually adjustable from 20° up to 115°. This wide adjustment range allows operators to select the optimal coating angle for different materials and coating formulations.
The LCM/M is constructed from high-grade stainless steel, providing excellent durability, resistance to corrosion, and compatibility with a wide range of coating chemicals and solvents used in laboratory environments.
The LCM/M has overall dimensions of 600 × 600 × 300mm (L × W × H) and weighs 30kg. Its compact, laboratory-friendly footprint makes it suitable for standard bench-top installation in a testing laboratory.
Yes. The LCM/M is designed to handle specialty papers and artificial leather in addition to natural fibers, synthetic fibers, blended fabrics, and nonwoven fabrics, making it a versatile solution for laboratories working across multiple material categories.
