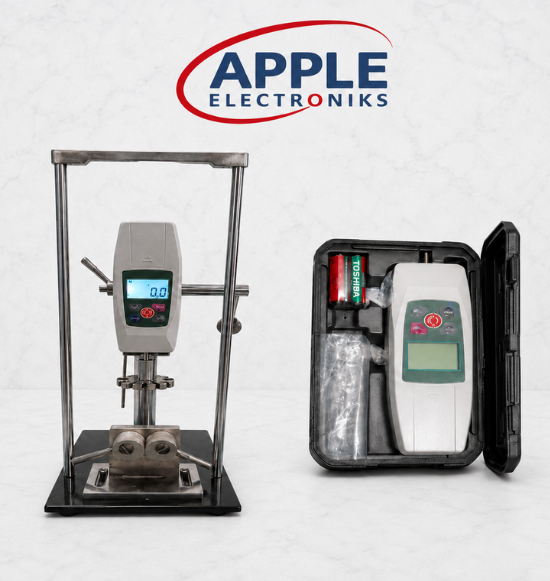

MFT500+ Manual Wire Crimp Pull Force Tester (Digital) – 500N – Latest
The MFT500+ Manual Wire Crimp Pull Force Tester is a unique and economic digital instrument for tension and compression testing with good stability, wide application range, and convenient manual operation for production floor and laboratory use.
It is used for wire crimp, push-pull, peeling, breaking strength, adhesion testing, peel off, compression, and tensile testing of fabric, plastic, wire, crimp, yarn, strips, and many more materials. Digital force measurement displays maximum/peak pull strength and breaking force.
With a 500N (50 kg) capacity and 0.5% F.S accuracy, the MFT500+ reads force in N, Kgf, and Lbf. Its simple hand pressure operation, compatibility with various fixtures, and compact design make it ideal for quick and reliable pull force testing per EN 60352-2.
Specifications
Capacity
500N (50 kg)
Accuracy
0.5% F.S
Force Units
N, Kgf, Lbf
Traveling Length
200mm / 400mm (Optional)
Weight
16 kg
Power Supply
220/110V, 50/60Hz
Dimensions (L × W × H)
450 × 400 × 650 mm
Key Features
Simple and hand pressure operation — unique, economic instrument with good stability, wide application range, and convenient usage for manual testing on production floor or in the laboratory
Compatible with various kinds of fixtures for wire crimp, push-pull, peeling, breaking strength, adhesion, peel off, compression, and tensile testing of fabric, plastic, wire, yarn, and strips
Compact design and simple construction for easy portability and installation on any workbench — no complex setup or installation required
Digital force measurement with peak hold — measures maximum/peak pull strength and breaking force displayed in N, Kgf, and Lbf with 0.5% F.S accuracy
Test Standards
EN 60352-2
Key Highlights
Multi-Application Force Testing
Covers wire crimp, push-pull, peel, adhesion, compression, and tensile testing on fabric, plastic, wire, crimp, yarn, strips, and more — all in one compact instrument.
Simple Hand Pressure Operation
Manual, tool-free operation with compatibility for various fixtures. Compact benchtop design is ideal for any laboratory or production floor with minimal space requirements.
Digital Peak Force Display
Measures and displays maximum/peak pull strength and breaking force in N, Kgf, and Lbf with 0.5% F.S accuracy — ensuring precise, reliable results for every test.
The MFT500+ Manual Wire Crimp Pull Force Tester is used for tension and compression testing across a wide range of applications: wire crimp testing, push-pull, peeling, breaking strength, adhesion testing, peel off, compression, and tensile testing of fabric, plastic, wire, crimp, yarn, strips, and many more materials.
The MFT500+ has a maximum force capacity of 500N (equivalent to 50 kg) with an accuracy of 0.5% F.S (Full Scale). This makes it suitable for precise pull and compression force measurements across a wide variety of industrial and laboratory applications.
The MFT500+ digital force gauge displays force readings in three selectable units: N (Newtons), Kgf (kilogram-force), and Lbf (pound-force). The digital readout captures and holds the maximum/peak pull strength and breaking force for easy recording.
The standard traveling length of the MFT500+ is 200mm. An extended 400mm traveling length is available as an optional configuration for applications requiring a longer stroke, such as peel testing of longer specimens or multi-point crimp testing along wire lengths.
The MFT500+ Manual Wire Crimp Pull Force Tester complies with EN 60352-2, the European standard for solderless connections covering crimped electrical connections. This makes it the appropriate instrument for quality control and type testing of wire crimp terminals in electrical and electronics manufacturing.
Yes. The MFT500+ is designed to be compatible with various kinds of fixtures and grips, making it highly versatile for different test types and specimen geometries. Whether testing wire crimp terminals, peel strips, fabric samples, or plastic components, appropriate fixtures can be mounted to suit the specific application.
The MFT500+ measures 450 × 400 × 650 mm (L × W × H) and weighs 16 kg, making it a compact and portable benchtop unit. It operates on 220V or 110V, 50/60Hz power supply, covering both Indian and international electrical standards without requiring a voltage converter.
Yes. The MFT500+ is specifically designed for wire crimp pull force testing and complies with EN 60352-2. It is widely used in electrical wire harness manufacturing, automotive wiring, and electronics assembly for incoming inspection and production line quality control of crimped terminal connections.
