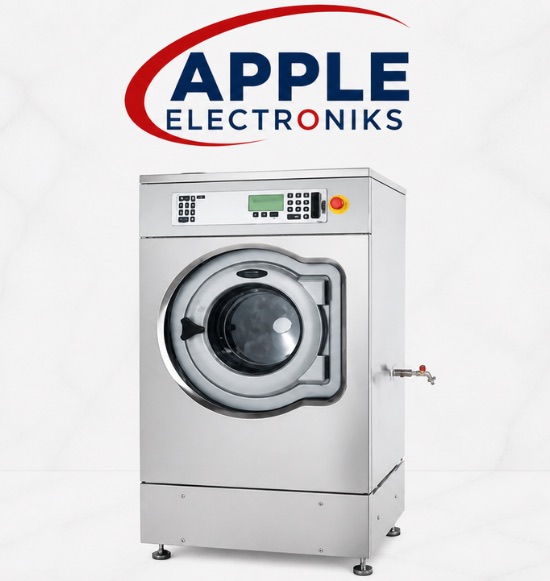

Wascator FOM 71 CLS – Auto – IEC60456 (Made in Sweden/Italy)
The Wascator FOM 71 CLS – Auto – IEC60456 is a microprocessor-controlled industrial washing machine made in Sweden/Italy, designed for standardized wash-fastness and dimensional change testing of textile and fabric samples per IEC 60456-Ed5 closed card specifications.
It supports up to 999 programmable washing and drying programs, designed as required via keyboard input and stored in memory. The machine is pre-programmed with BS, ISO, and IWS standard test programs and features an automatic soap dispenser for multiple sequential washing cycles.
Extraction cycles run fully automatically without any operator intervention, ensuring consistent and reproducible results. Compliant with IEC 60456, ISO 5077/6330, M&S P-series protocols, and BS EN 25077/26330 — the Wascator is the industry benchmark for controlled wash testing.
Specifications
Program Capacity
Up to 999 Wash/Dry Programs
Power Supply
230/415V, 50/60Hz, 6.0 kW
Weight
265–285 kg
Origin
Made in Sweden / Italy
Test Specification
IEC 60456-Ed5 Closed Card
Dimensions (L × W × H)
760 × 800 × 1600 mm
Key Features
Microprocessor controlled with up to 999 programmable washing and drying programs — designed as required via keyboard input and stored in memory for repeatable test conditions
Pre-programmed as standard with BS, ISO, and IWS test programs for immediate compliance testing without additional setup
Automatic soap dispenser enables multiple sequential washing cycles with precise detergent dosing and no manual intervention between washes
Fully automatic extraction cycles — the complete wash and extract sequence runs unattended, ensuring consistent and reproducible test results every time
Test Standards
IEC 60456
IEC 456
ISO 5077
ISO 6330
M&S P1
M&S P1A
M&S P3A
M&S P12
M&S P91
M&S P99
M&S P99A
M&S P134
BS EN 25077
BS EN 26330
Key Highlights
999 Programmable Wash/Dry Cycles
Up to 999 customizable washing and drying programs stored in memory, input via keyboard — plus pre-loaded BS, ISO, and IWS test programs for instant compliance testing.
Fully Automatic Operation
Automatic soap dispensing and fully unattended extraction cycles ensure consistent, reproducible test results with zero operator intervention during the wash sequence.
14 International Standards
Complies with IEC 60456, IEC 456, ISO 5077, ISO 6330, M&S P1/P1A/P3A/P12/P91/P99/P99A/P134, and BS EN 25077/26330 for comprehensive wash test coverage.
The Wascator FOM 71 CLS – Auto – IEC60456 is used for standardized wash-fastness and dimensional change testing of textiles and fabrics. It simulates domestic washing conditions under controlled, reproducible parameters in compliance with international test standards including IEC 60456, ISO 6330, and BS EN 26330.
The Wascator FOM 71 CLS can store up to 999 washing and drying programs. Programs are designed as required via keyboard input, stored in memory, and recalled instantly for repeatable test conditions. This makes it highly flexible for laboratories running multiple test protocols simultaneously.
Yes. The Wascator FOM 71 CLS is pre-programmed as standard with BS, ISO, and IWS test programs, allowing laboratories to begin compliant testing immediately without manual program entry. Additional custom programs can also be created and stored alongside these pre-loaded standards.
The Wascator FOM 71 CLS operates on 230V or 415V supply at 50/60Hz with a power consumption of 6.0 kW. The dual-voltage compatibility (230/415V) makes it suitable for different regional electrical standards, covering both single-phase and three-phase installations.
The Wascator FOM 71 CLS complies with 14 standards: IEC 60456, IEC 456, ISO 5077, ISO 6330, M&S P1, P1A, P3A, P12, P91, P99, P99A, P134, BS EN 25077, and BS EN 26330. This broad compliance makes it the preferred machine for textile testing laboratories working to Marks & Spencer, British Standards, and ISO requirements.
Yes. The Wascator FOM 71 CLS is equipped with an automatic soap dispenser that handles detergent dosing for multiple washing cycles without manual intervention. This ensures precise and consistent detergent concentration in every wash cycle, which is critical for accurate and reproducible wash-fastness test results.
The Wascator FOM 71 CLS has dimensions of 760 × 800 × 1600 mm (L × W × H) and weighs between 265 and 285 kg depending on configuration. Its compact footprint relative to its capacity makes it suitable for standard laboratory spaces, though adequate floor reinforcement is recommended due to its substantial weight.
Yes. The Wascator FOM 71 CLS fully supports ISO 6330 (domestic washing and drying procedures for textile testing) as well as ISO 5077 (dimensional change determination). It is also compliant with IEC 60456-Ed5 closed card specifications, making it ideal for laboratories requiring simultaneous compliance with multiple international washing standards.
