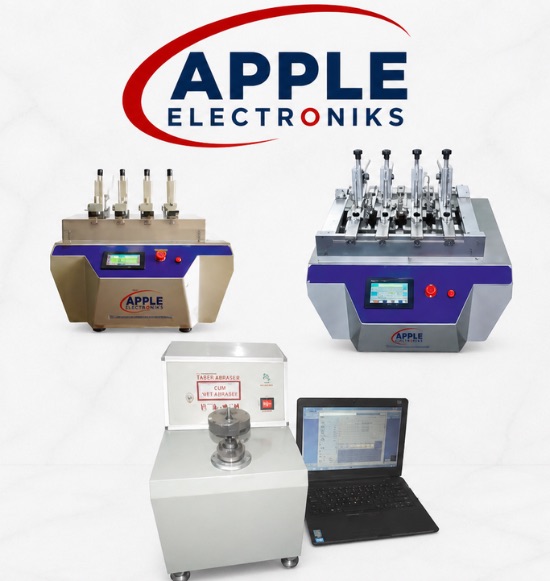

WAT Wyzenbeek Abrasion Tester – Latest
The WAT Wyzenbeek Abrasion Tester determines the abrasion resistance of fabrics when rubbed against a standard abradant or wire mesh screen with a backward and forward motion over a curved surface. It is used by automotive, woven fabric, and PVC fabric manufacturers working to US standards.
Motor driven with 4 abrasion heads, PLC & HMI control for precise cycle counting. Features a sealed transmission drive for quieter operation and suction manifolds to connect to an auxiliary vacuum cleaner. Complies with ASTM D4157, SAE J948, and Chrysler LP-463KB-06-01.
The oscillatory frequency is 90 CPM (adjustable) with a 76 mm arc. Sample size is 245 × 73 mm, tension is adjustable from 1–6 lbf and load from 1–3.5 lbf. Optional consumables include rubber pads, SS wire mesh screens, and Abrading Fabric #10 Cotton Duck.
Specifications
Testing Stations
4 groups
Oscillatory Frequency
90 CPM (adjustable)
Oscillatory Arc
76 mm
Dimension of Sample
245 × 73 mm
Tension on Sample
1–6 lbf (27.2N), adjustable
Load on Sample
1–3.5 lbf (15.8N), adjustable
Power
220 / 110V, 50/60 Hz, 3A
Weight
125 kg
Dimensions (L × W × H)
550 × 560 × 550 mm
Optional Consumables
Rubber Pads (pack of 8) | SS Wire mesh screens (pack of 4) | Abrading Fabric #10 Cotton Duck – 5 Meter
Key Features
Motor driven with 4 abrasion heads; PLC & HMI for precise cycle control
Sealed transmission drive for quieter operation
Suction manifolds to connect to an auxiliary vacuum cleaner
Adjustable oscillatory frequency, sample tension, and load on sample
Accepts standard abradant or wire mesh screen; suitable for automotive, woven fabric, and PVC fabric manufacturers
Test Standards
ASTM D4157
SAE J948
Chrysler LP-463KB-06-01
Key Highlights
Automotive & US Standards
Designed for automotive, woven fabric, and PVC fabric manufacturers working to US standards including ASTM D4157, SAE J948, and Chrysler LP-463KB-06-01.
PLC & HMI Control with 4 Stations
Motor driven with 4 abrasion heads, PLC & HMI interface for precise cycle control. Sealed transmission drive ensures quieter operation.
Adjustable Test Parameters
Oscillatory frequency, sample tension (1–6 lbf), and load (1–3.5 lbf) are all adjustable. Accepts both standard abradant and wire mesh screen.
It is designed for automotive, woven fabric, and PVC fabric manufacturers working to US standards.
The tester accepts a standard abradant or a wire mesh screen. Optional consumables include rubber pads (pack of 8), SS wire mesh screens (pack of 4), and Abrading Fabric #10 Cotton Duck (5 metres).
Oscillatory frequency is adjustable up to 90 CPM. Tension on sample is adjustable from 1–6 lbf (27.2N) and load on sample from 1–3.5 lbf (15.8N).
ASTM D4157, SAE J948, Chrysler LP-463KB-06-01, and many more US standards.
The machine has 4 test stations (groups), with motor-driven abrasion heads and PLC & HMI control.
The sealed transmission drive is a design feature that reduces operating noise, making the instrument suitable for laboratory environments.
The suction manifolds allow the instrument to connect to an auxiliary vacuum cleaner to remove debris and fibres generated during abrasion testing.
Power: 220/110V, 50/60 Hz, 3A. Weight: 125 kg. Dimensions: 550 × 560 × 550 mm (L×W×H).
